873 Series Quick Ship Contactor Control Panel
The Quick Ship Contactor Temperature Control panel provides fast shipment, compact packaging, and is pre-engineered for resistive load applications. The panel is completely assembled, pre-wired, tested, and ready for trouble free installation and operation. Designed for use in industrial environments and outdoor installations. 4
Approvals
Standard Features
NEMA 4X Fiberglass Enclosure
16”H x 14”W x 8”D Enclosure for 1 Circuit (48A max)
20”H x 16”W x 8”D Enclosure for 2 Circuits (48-96A)
Single or Three Phase Loads
50 Amp Contactor for Resistive Loads (per circuit)
120 VAC Control Transformer
UL Listed4
Wiring Diagram Permanently Affixed to the Inside of the Cover
Terminals for Customer Supplied Remote Interlock
Optional Features
Digital Indicating Thermostat (oF only) 32-999oF range
Digital 1/16 th DIN Process Controller with RS485 Communications available (oF or oC) 0-1600oF range
Disconnect Switch1
Power Fusing2
Enclosure Heater3
Pilot Light for Indication of Power “ON”
Digital Indicating Limit Control with manual reset (oF only) 32-999oF range
1/16th DIN Digital Indicting Limit Control with manual reset (oF or oC) 0-1600oF range
Ordering Information

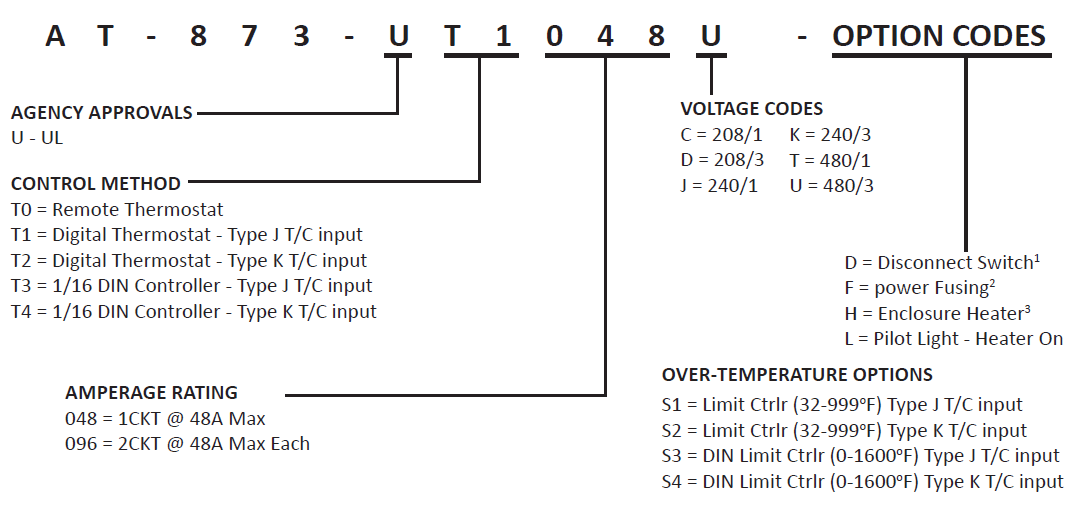

Quick Ship, build your catalog number
Note
1. NEC code requires disconnecting means within sight of a heater.
2. Power fusing is required by NEC for panels greater than 48 amps.
3. Heater is recommended for outdoor panels in cold environments with ambient below 32oF.
4. Although designed and tested for use in outdoor locations, UL rating is Type 1 only.
