Options Screw Plug Immersion 2″ & 2 ½”

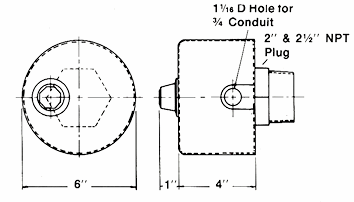

NEMA 1 with Thermostat
|
Range
|
Rating
|
No.
Poles |
Cat.
No. |
|
0-100°F
|
25 Amp @ 277 V
|
2
|
N1T4
|
|
60-250°F
|
25 Amp @ 277 V
|
2
|
N1T5
|
|
150-550°F
|
25 Amp @ 277 V
|
2
|
N1T6
|

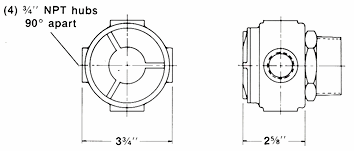

Moisture / Explosion Resistant Housing
Catalog Number N4/7
Moisture Resistant Housing with Thermostat
|
Range
|
Rating
|
No.
Poles |
Cat.
No. |
|
0-100°F
|
25 Amp @ 277 V
|
2
|
N4T4
|
|
60-250°F
|
25 Amp @ 277 V
|
2
|
N4T5
|
|
150-550°F
|
25 Amp @ 277 V
|
2
|
N4T6
|

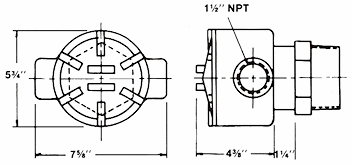

Explosion Resistant Housing with Thermostat
|
Range
|
Rating
|
No.
Poles |
Cat.
No. |
|
0-100°F
|
25 Amp @ 277 V
|
2
|
N7T4
|
|
60-250°F
|
25 Amp @ 277 V
|
2
|
N7T5
|
|
150-550°F
|
25 Amp @ 277 V
|
2
|
N7T6
|
